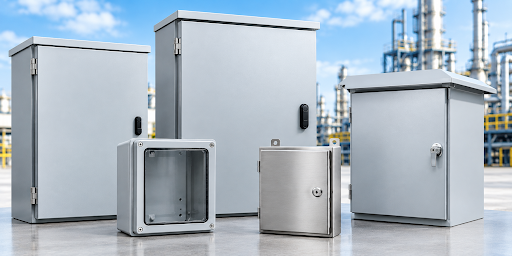

Electrical equipment can face very different operating conditions depending on its location. An enclosure installed inside a clean commercial building has different protection requirements from one exposed to rain, dust, oil, or industrial processes. Understanding NEMA enclosure ratings helps engineers, installers, and facility managers identify the level of environmental protection an electrical enclosure is designed to provide.
The National Electrical Manufacturers Association’s NEMA 250 standard covers enclosures for electrical equipment rated up to 1,000 volts and establishes requirements for various indoor, outdoor, and hazardous-location enclosure Types. These classifications are based on specific environmental conditions rather than simply indicating whether an enclosure is generally “weatherproof.”
What Are NEMA Enclosure Ratings?
NEMA enclosure ratings classify enclosures according to the environmental protection they are designed to provide. The rating identifies the conditions an enclosure is intended to withstand, which can include exposure to falling dirt, circulating dust, water, oil, coolants, corrosion, or temporary submersion, depending on the Type.
NEMA 250 includes enclosure Types such as 1, 2, 3, 3R, 4, 4X, 5, 6, 6P, 12, 12K, and 13 for different applications. It also addresses certain enclosure Types intended for hazardous classified locations.
This makes the classification useful when selecting protection based on the actual installation environment.
Why Are NEMA Enclosure Ratings Important?
Electrical components can be affected by moisture, airborne contaminants, dust, oils, and other environmental factors. An enclosure helps isolate sensitive equipment from these conditions while also providing a physical barrier around electrical components.
For example, NEMA Type 4 and Type 4X enclosures are designed to provide protection against specified solid-material and water exposure. Type 4X adds corrosion-related protection. NEMA Type 6 includes protection against occasional temporary submersion, while Type 6P addresses occasional prolonged submersion.
The correct classification therefore depends on what the equipment is likely to encounter during normal operation and maintenance.
Common NEMA Enclosure Types Explained
Different NEMA enclosure ratings are suited to different environmental conditions.
Type 1
Type 1 enclosures are generally intended for indoor locations. They provide protection against contact with enclosed electrical components and limited ingress of falling dirt.
Type 3 and Type 3R
These Types are intended for indoor or outdoor applications where protection against specified weather conditions is required. Type 3R, for example, addresses exposure to rain, sleet, and snow.
Type 4
Type 4 enclosures provide protection against specified solid foreign objects and water exposure, including splashing and hose-directed water.
Type 4X
Type 4X provides the applicable Type 4 protection while adding requirements related to corrosion resistance. This can make it appropriate for environments where corrosive agents are an additional concern.
Type 12
Type 12 is commonly associated with indoor industrial applications. Its protection characteristics include specified exposure to dust, dirt, dripping water, and certain noncorrosive liquids.
Type 13
Type 13 is intended for indoor applications and provides protection against specified solid contaminants, light water exposure, and spraying or splashing of oil and noncorrosive coolants.
The exact requirements should always be confirmed against the applicable standard and manufacturer’s documentation.
How Do You Select the Right NEMA Type?
Choosing an enclosure should begin with an assessment of the installation environment. Determine whether the equipment will be located indoors or outdoors and identify possible exposure to rain, snow, dust, water, oil, coolants, chemicals, or corrosive substances.
The equipment itself also matters. Consider the dimensions of the components, cable-entry requirements, mounting configuration, access needs, and heat-management requirements.
Field modifications should receive particular attention. NEMA guidance notes that certain Type-rated enclosures have requirements concerning mounting methods, and the final installation may be subject to approval by the Authority Having Jurisdiction.
Rather than selecting an enclosure solely because its rating sounds suitable, compare the application’s environmental conditions with the specific protections provided by the relevant NEMA Type.
NEMA Ratings and IP Ratings: Are They the Same?
NEMA Types and IP ratings are related but are not interchangeable systems. IP ratings, defined by IEC 60529, primarily address protection against solid particles and water.
NEMA classifications can consider additional hazards, including corrosion, rust, icing, oil, and coolants. Because of these additional requirements, NEMA states that there is no complete one-to-one equivalence between NEMA enclosure Types and IP ratings.
NEMA also notes that IP ratings are not a substitute for NEMA enclosure Type ratings in U.S. electrical installations where the applicable requirements call for a NEMA Type.
Where Are NEMA-Rated Enclosures Used?
NEMA-rated enclosures can be found in industrial facilities, commercial buildings, outdoor electrical installations, manufacturing environments, control systems, automation equipment, and utility applications.
They may house electrical controls, wiring connections, switches, terminal equipment, instrumentation, and other components that need protection from their surrounding environment.
Conclusion
Understanding NEMA enclosure ratings provides a practical starting point for selecting electrical enclosures according to their intended environment. The different Types address different combinations of environmental conditions, so the right choice depends on the location, equipment, installation method, and hazards that may be encountered. For an electrical junction box, selecting an appropriate enclosure Type can help protect electrical connections from the conditions expected at the installation site. A careful assessment of environmental exposure and installation requirements can lead to a more suitable and reliable enclosure specification.
